Superior Insertion Performance — S1 Strong & S2 Smooth Types
The Derbarzt BnT Implant System — Better Fit & Tunes — delivers superior insertion performance through its innovative dual-type design. With a self-tapping capability up to 3mm in D2 bone, initial ISQ of 60 or higher, narrow neck cortical-stress reduction, and optimised SLA surface treatment, BnT is engineered for reliable osseointegration in every clinical situation. Exclusively available in India through AJJA Dental Solution.
Download Product Brochure (PDF)Two carefully engineered insertion types — each tuned to a different clinical preference and bone density scenario.

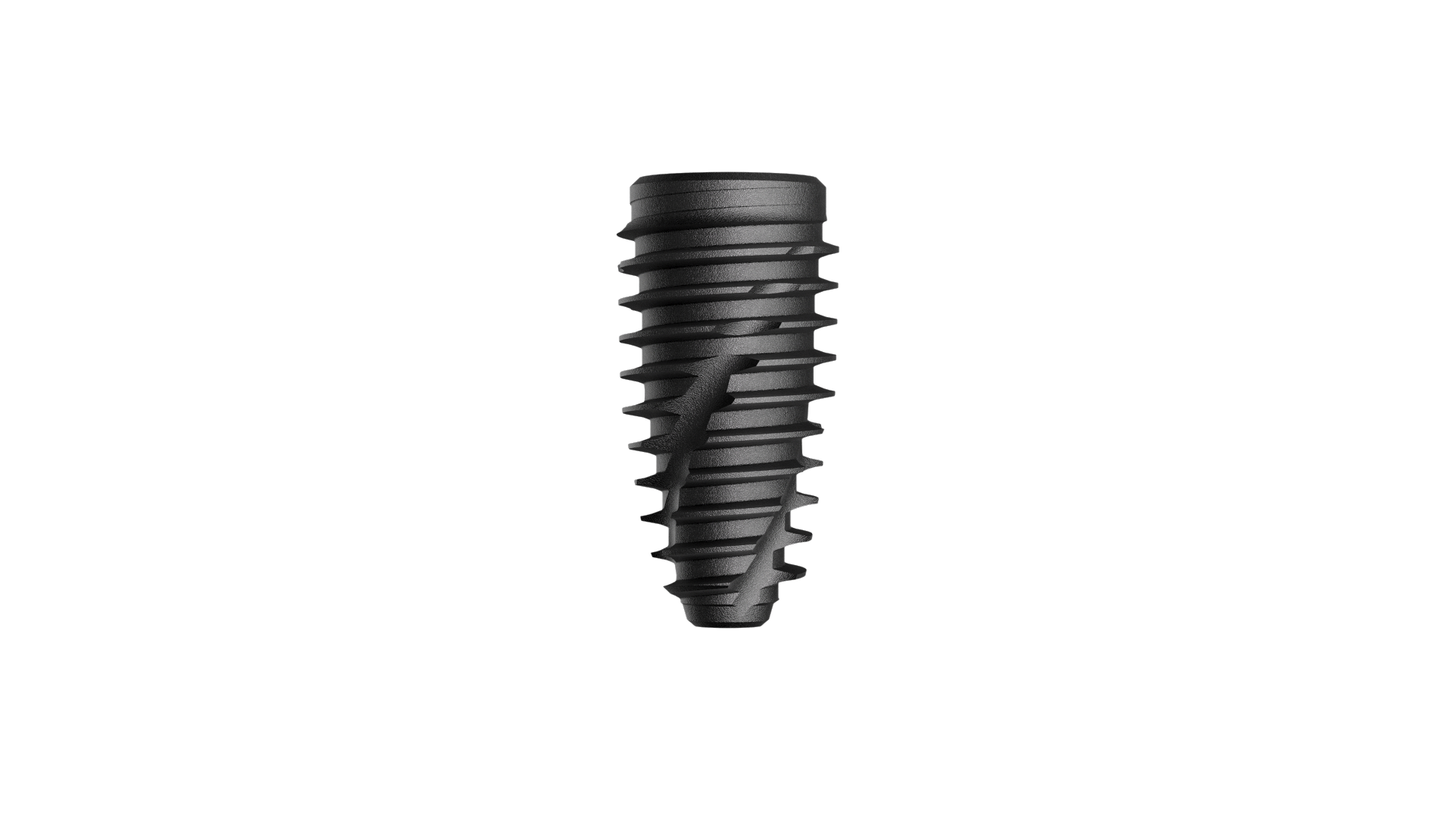

S1 provides firm, clearly perceptible tactile feedback, ensuring a strong and powerful insertion feel during implant placement — ideal for clinicians who prefer confident, decisive control.

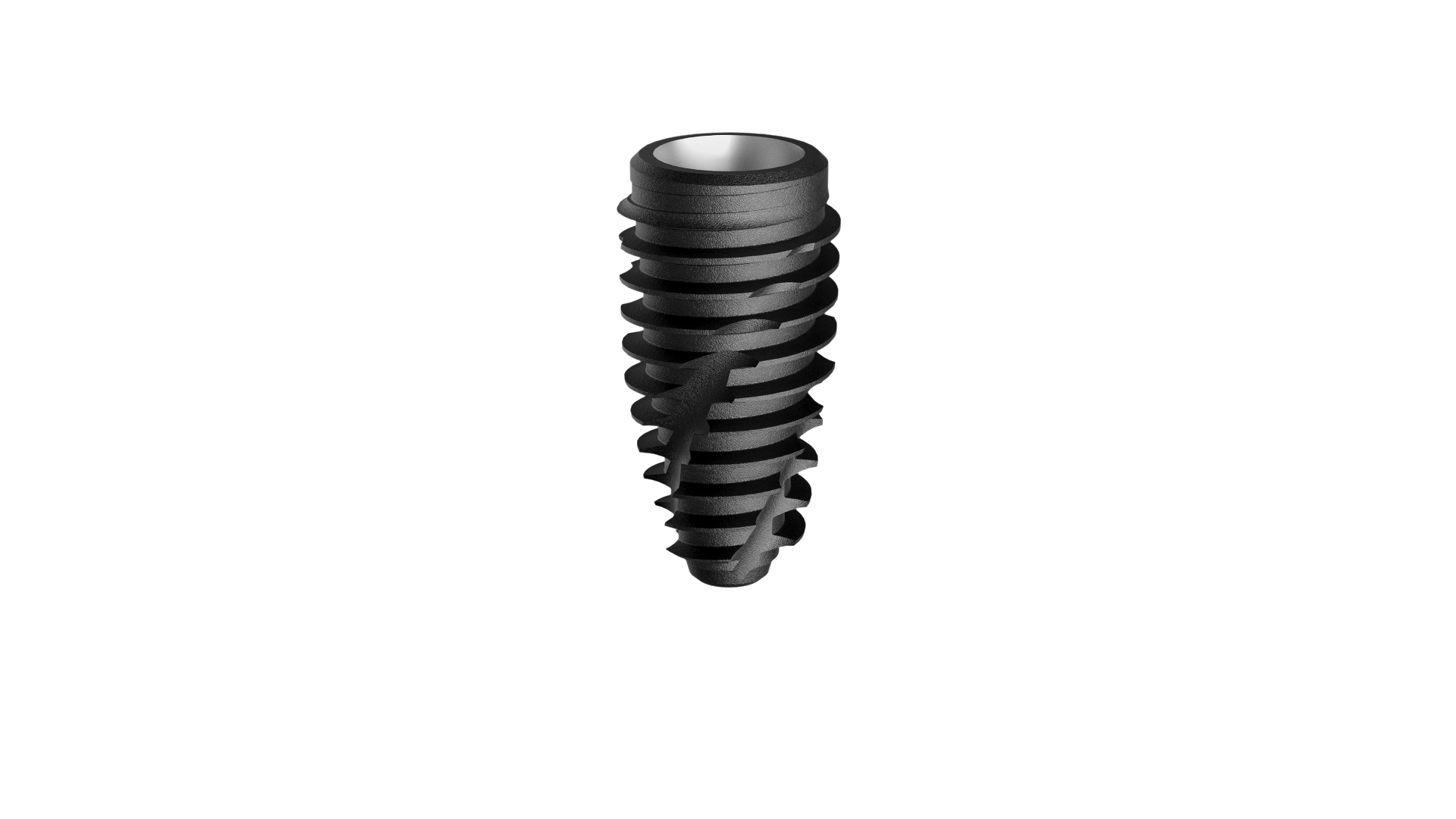

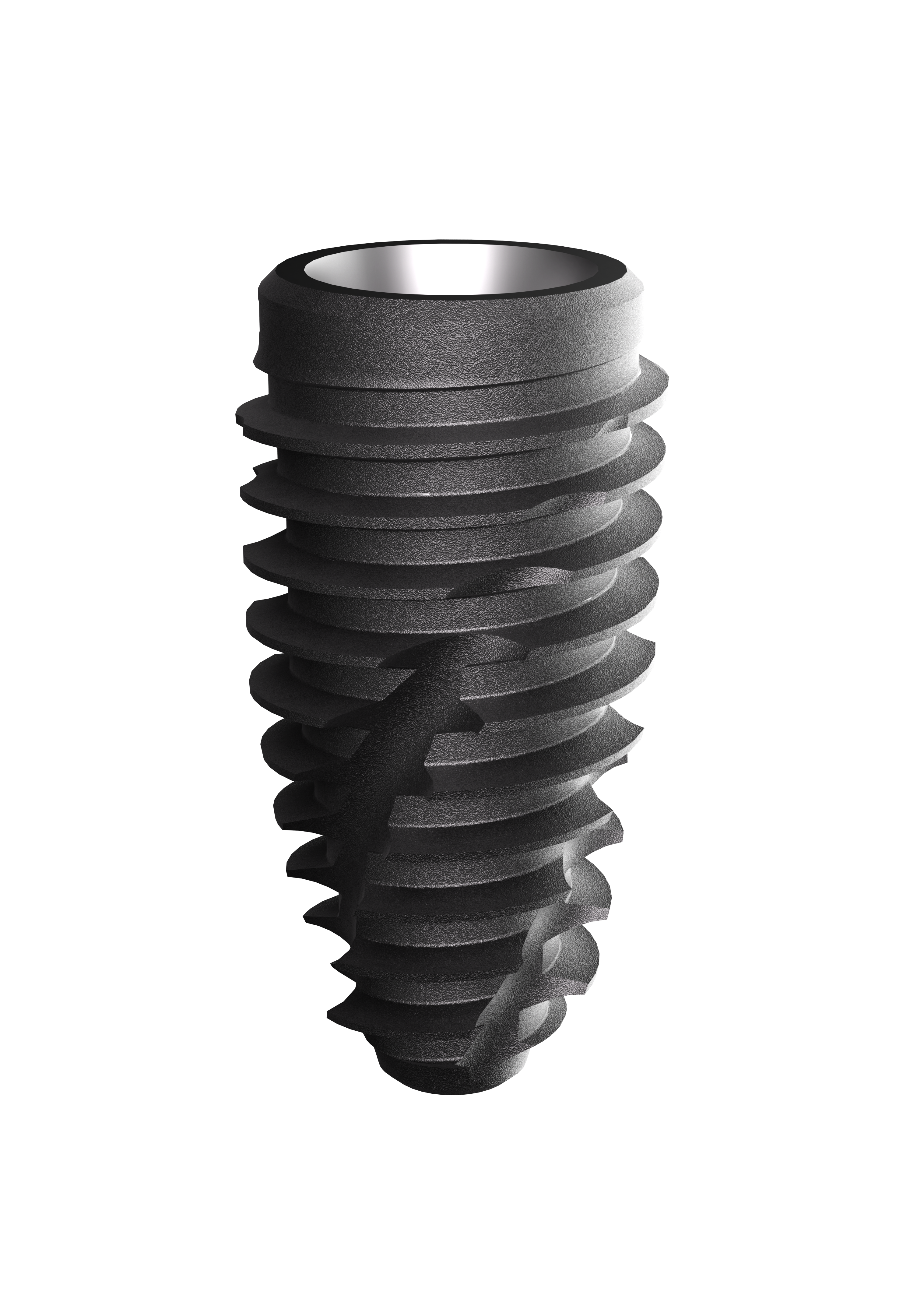

S2 delivers a smooth and consistent insertion feel throughout placement. Its deep, finely cut thread structure ensures continuous, stable resistance — perfect for precision-first practitioners.
Every design detail of the BnT implant is purpose-built to maximise primary stability, reduce surgical trauma, and accelerate healing — from the narrow neck to the sharp apex.

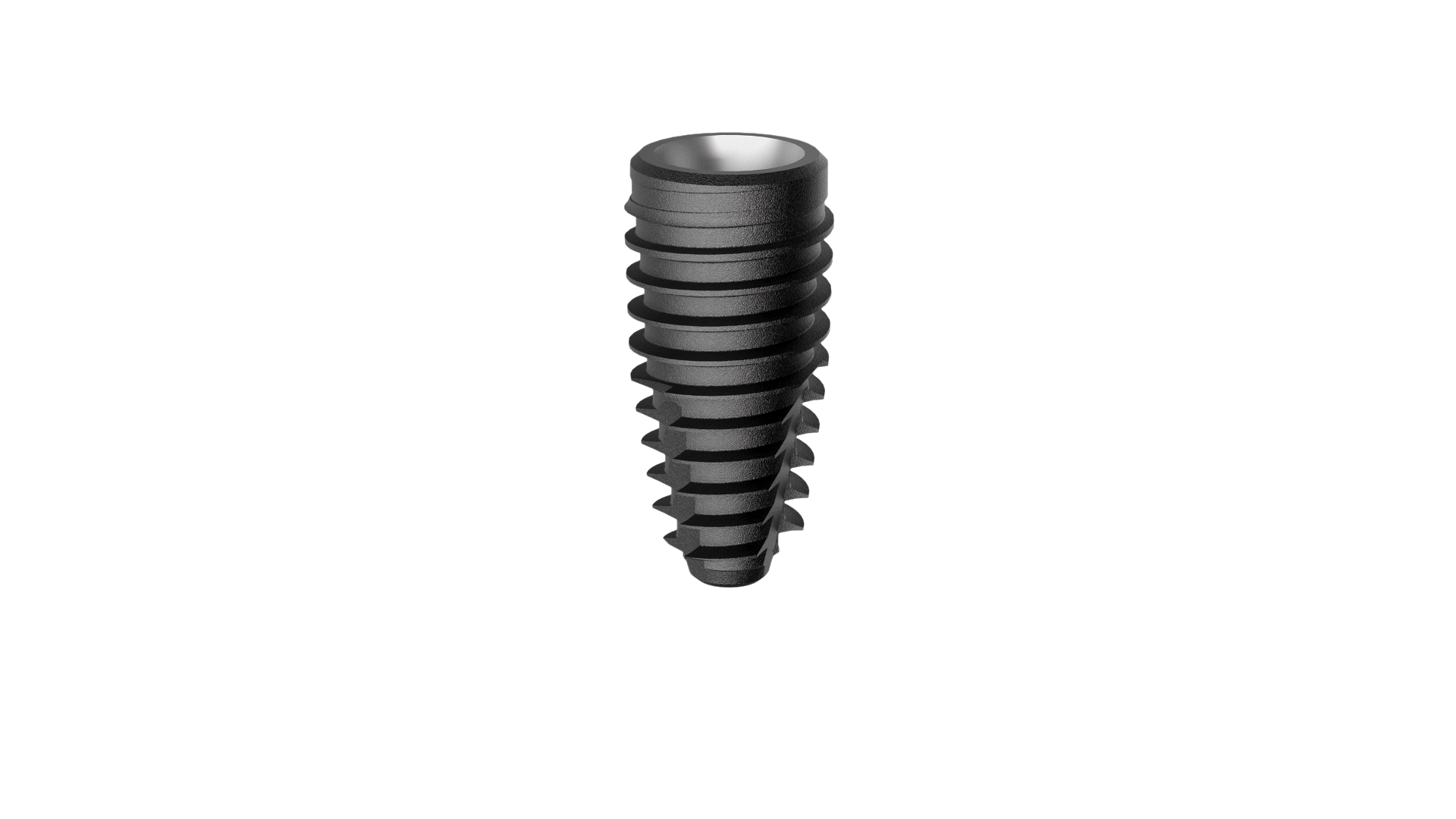

BnT S1 & S2 — shared implant platform
Every BnT implant passes through a one-stop in-house full process — from precision CNC machining to multi-stage cleaning and SLA surface treatment — guaranteeing batch-to-batch consistency and clinical reliability.
Deliver immediate and reliable primary stability across D1–D4 bone densities, including compromised sites.
Enable immediate and early loading protocols through the double taper progressive compression design.
Preserve crestal bone health long-term via narrow neck design that minimises cortical stress concentration.
Reduce risk to adjacent anatomy with a sharp apex safety-zone design — suitable even for anterior cases.
Support a complete prosthetic ecosystem — temporary, cemented, milled, angled, MUA, scan body, and lab analog options.
Provide 11° Morse Taper compatibility with BnS and various other implant systems for seamless integration.
From site preparation to final seating — the BnT system is designed for clinical efficiency without compromising outcome predictability.
Begin with the Stopper Drill Ø2.2, followed by the colour-coded final stopper drill (F3.5–F5.0) matching your chosen implant diameter. Cortical drill used for D1–D2 bone as needed.
Select S1 (Strong) for dense bone requiring powerful tactile feedback, or S2 (Smooth) for softer bone requiring consistent progressive resistance. Choose implant length and diameter.
Connect the Implant Driver (H.P) to handpiece and rotate in engine placement mode. Complete up to 80% seating with H.P., then finalise with the Torque Wrench (T.W.) driver for precision depth control.
Attach the Cover Screw or Healing Abutment. After osseointegration, proceed with your chosen prosthetic pathway — scan body, impression coping, MUA, or direct abutment — using the BnT prosthetic kit.
BnT Implants are packaged in a proprietary air-floating type ampule with an integrated implant and fixation pin design. The implant is separated from the ampule by diagonal rotation — never contacting the inner ampule wall — effectively preventing external contamination.
The result is a cleaner implant with optimal sterility maintained right up to the moment of placement.
Connect Implant Driver — attach the H.P. driver directly to the ampule interface.
Rotate in engine placement mode — Simple & Easy. The implant separates cleanly from the ampule.
Place directly — transfer from ampule to osteotomy site in a single, smooth, contamination-free motion.
The air-floating ampule system is engineered to maintain the implant's SLA surface integrity from manufacturing to chairside — no compromise on sterility, no extra handling steps.
Download the full Derbarzt BnT Implant System Product Catalogue — featuring the complete implant line-up, S1 vs S2 comparison, prosthetic flow diagram, drilling sequences by bone density, surgical instrument specifications, and manufacturing quality details.
